Product Details

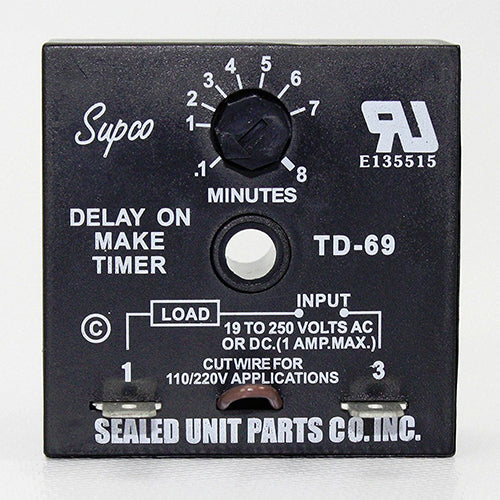

The Supco universal delay on make timer is a professional solid-state electronic control module designed to protect air conditioning, refrigeration, and heat pump compressors from damaging short-cycling. It operates seamlessly across a broad voltage range and features dial-adjustable delay timing to safeguard critical motor windings during power interruptions or startup.
Technical Specifications
| Brand | Supco |
| Model Series | TD60 Series |
| Manufacturer Part Number | TD-69 |
| Timer Action Type | Delay on Make (NC / Normally Open contacts close after delay) |
| Input Voltage Range | 19 to 250 Volts AC or DC |
| Maximum Current Rating | 1.0 Amp Maximum (100 mA minimum load current) |
| Adjustable Delay Period | 6 Seconds to 8 Minutes |
| Electrical Terminals | Two (2) 1/4" Male Spade Connectors |
