Product Details

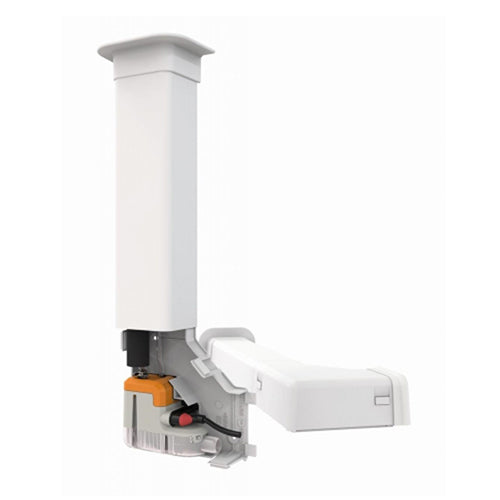

The Sauermann Delta Pack is a premium condensate drainage kit cleanly concealed within a quick-fit white trunking elbow, engineered for flawless aesthetic integrations alongside high-wall indoor mini-split systems.
Technical Specifications
| Brand | Sauermann |
| Model Range | Delta Pack Series |
| Trunking Casing Dimensions | 80mm x 60mm White Elbow |
| Maximum Flow Rate | 20 L/h |
| Max. Discharge Head Lift | 10m |
| Acoustic Sound Level | 22 dB(A) |
| Power Supply / Consumption | 230V AC, 50/60Hz | 14W |
| Enclosure Protection Class | IPX4 Splash-Proof |
| Safety Switch Limit | NC 8A Resistive Contacts |
