Product Details

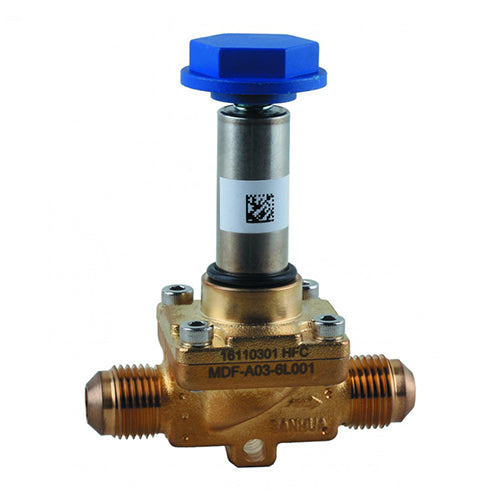

The Sanhua MDF6 is a pilot-operated normally closed solenoid valve body engineered to deliver reliable refrigeration media control within commercial display cases, chillers, and modern heat pump cycles.
Technical Specifications
| Brand | Sanhua |
| Valve Series | MDF6 Series |
| Model Identifier | MDF-A03-6L001 |
| Valve Type | Normally Closed (NC) |
| Actuation Method | Pilot Operated |
| Connection Size | 3/8" SAE Flare |
| Flow Capacity (Kv) | 0.80 m³/h |
| Internal Port Diameter | 6.0mm |
| Fluid Temperature Range | -30°C to +105°C |
| Maximum Working Pressure | 4.5 MPa (45 bar) |
