Product Details

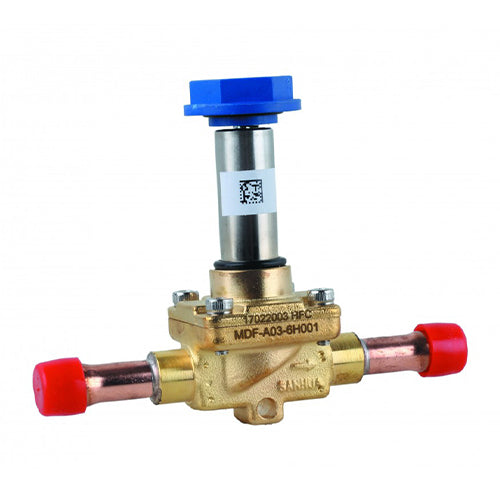

The Sanhua MDF10 is a heavy-duty, pilot-operated normally closed solenoid valve body engineered to manage large liquid or suction volumetric pipelines across central HVAC chillers and industrial cold storage systems.
Technical Specifications
| Brand | Sanhua |
| Valve Series | MDF10 Series |
| Model Identifier | MDF-A03-10H001 |
| Valve Type | Normally Closed (NC) |
| Actuation Method | Pilot Operated |
| Connection Size | 1/2" ODF Solder |
| Flow Capacity (Kv) | 1.90 m³/h |
| Internal Port Diameter | 10.0mm |
| Fluid Temperature Range | -30°C to +105°C |
| Maximum Working Pressure | 4.5 MPa (45 bar) |
