Product Details

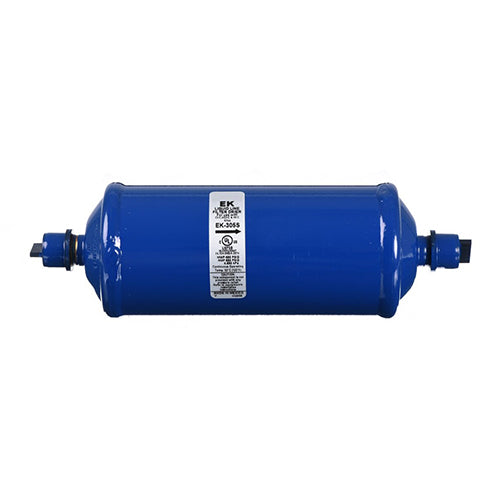

The Resour heavy-duty solid core liquid line filter drier is a high-volume filtration module engineered to protect heavy commercial chillers and large condensing networks from water contamination and systemic acid burn-outs.
Technical Specifications
| Brand | Resour |
| Model Range | EK High Capacity Series |
| Model Identifier | EK-305S |
| Connection Size & Type | 5/8" ODF Solder |
| Desiccant Volume Size | 30 Cubic Inches |
| Internal Filter Rating | 20 Microns |
| Core Structure Type | Compacted Bead Core |
| Maximum Safe Pressure | 680 PSIG |
| Refrigerant Compatibility | CFC / HCFC / HFC (R134a, R22, R404A, R407C, R410A, R507) |
