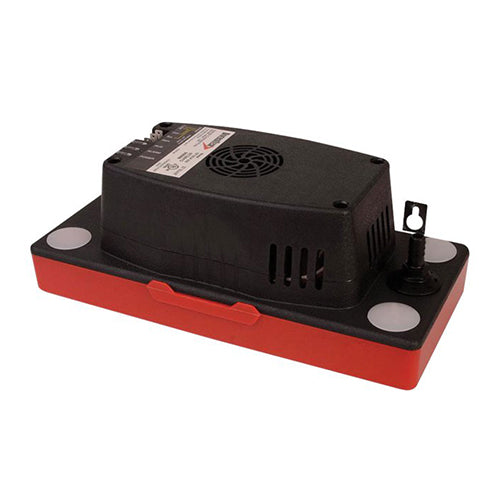

The DiversiTech RedBox LP REDBOX-1L-S is a low-profile 1-litre condensate tank pump engineered for high-capacity automatic water removal from commercial refrigeration and air conditioning systems. Featuring a maximum discharge flow rate of 280 litres per hour and a 5.1-metre lift, this robust unit includes integrated vibration isolation feet, metal wall-mounting tabs, and a universal plug-in power lead for rapid installation and retrofitting.
Technical Specifications
| Brand | DiversiTech |
| Model Code | REDBOX-1L-S |
| Product Range | RedBox LP Series |
| Tank Capacity | 1 Litre |
| Maximum Flow Rate | 280 L/h (LPH) |
| Maximum Discharge Head / Lift | 5.1m |
| Supply Voltage | 230V AC / 50 Hz |
| Power Consumption | 60W (1.0A) |
| Acoustic Sound Level | 44 dB(A) |
| Power Cable Length | 2m Universal Plug-in Lead |
| Inlet Ports | 4 Inlet Holes |
| Discharge Outlet Size | 3/8" & 1/4" Removable Check Valves |
| High-Level Safety Alarm | 230V / 3A Contacts |
| Dimensions (L x W x H) | 300 x 150 x 120 mm |
| Ingress Protection Rating | IP20 |
