Product Details

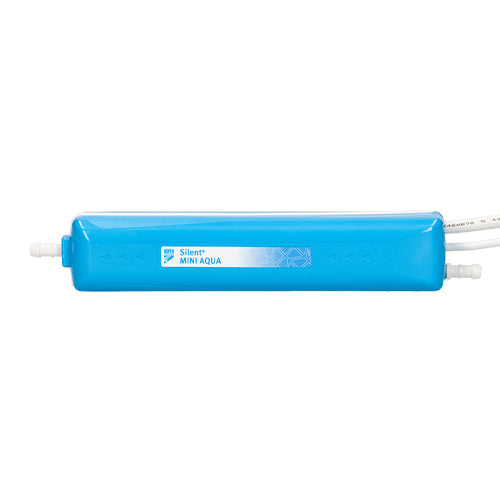

The Aspen Silent+ Mini Aqua FP3420 is an ultra-slim, 5th generation condensate removal pump engineered for quiet and efficient water removal in high-wall mini-split systems, ducted units, and restrictive HVAC enclosures. Featuring advanced capacitance sensing and a rotary diaphragm mechanism, it delivers adaptive flow rates up to 35 litres per hour while maintaining an ultra-quiet 16 dB(A) acoustic profile.
Technical Specifications
| Brand | Aspen Pumps |
| Model Range | Silent+ Series (Gen 5) |
| Model Name / Part Code | Silent+ Mini Aqua (FP3420) |
| Maximum Flow Rate | 35 L/h (at 0m Head) |
| Max. Recommended Head | 10m |
| Acoustic Sound Level | 16 dB(A) at 1m |
| Power Supply | 100 - 250V AC, 50/60Hz | 2.4W |
| Max. AC System Capacity | Up to 40kW (136,000 Btu/h) |
| Inlet / Outlet Connection | 16mm ID / 6mm OD |
| Enclosure Protection Rating | IP24 Splash-Proof |
| Safety Switch Contacts | 5.0A Normally Closed (NC) |
