Product Details

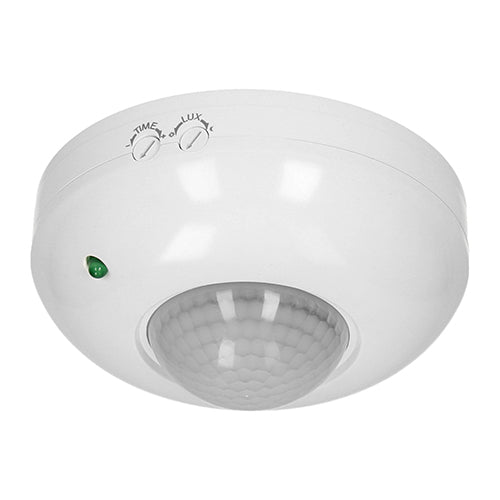

The 360 degree PIR infrared motion sensor is a compact surface-mounted ceiling control engineered to automate lighting across commercial refrigeration plant rooms, cold storage access corridors, warehouses, and trade facilities. Designed to optimise energy management by activating lighting circuits only when presence is detected, this sensor provides full 360° coverage up to a 6-metre radius. Featuring user-adjustable time-delay and ambient light (LUX) controls, it supports up to 1200W resistive loads or 300W LED lighting arrays for dependable occupancy sensing in commercial environments.
Technical Specifications
| Sensor Type | Passive Infrared (PIR) Motion Sensor |
| Detection Angle | 360° Ceiling Coverage |
| Detection Distance | 6m Maximum (<24°C) |
| Installation Height | 2.2 m to 4.0 m |
| Rated Load Capacity | 1200W (Incandescent) / 300W (LED & Fluorescent) |
| Supply Voltage | 220-240V AC, 50/60Hz |
| Time-Delay Setting | Min. 10 sec ± 3 sec to Max. 7 min ± 2 min (Adjustable) |
| Ambient Light Control | <10 – 2000 LUX (Adjustable) |
| Detection Motion Speed | 0.6 – 1.5 m/s |
| Ingress Protection Rating | IP20 |
