Product Details

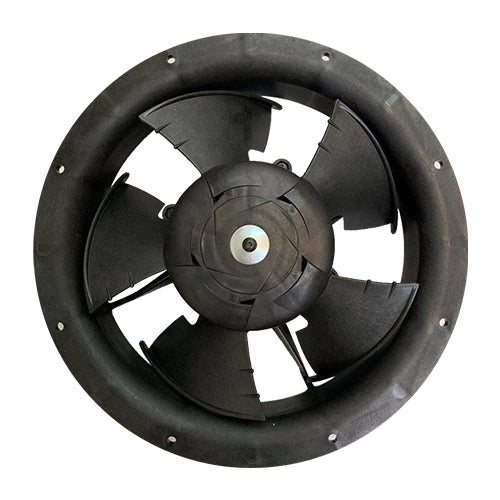

The 200mm compact axial fan is an industrial-grade, high-capacity cooling fan engineered for reliable, continuous operation across commercial refrigeration units, condenser bays, electrical enclosures, and hazardous-area ventilation systems.
Technical Specifications
| Product Type | Compact Axial Cooling Fan |
| Model Identifier | FP200CT |
| Frame Series | PENTA200 |
| Supply Voltage | 120V / 230V AC (50/60Hz) |
| Current Draw | 0.29A / 0.25A |
| Rotational Speed | 1,400 / 1,300 / 1,600 RPM |
| Direction of Rotation | Counter-Clockwise (CCW) |
| Ingress Protection Rating | IP66 |
| Explosion Protection Rating | ATEX Ex II 3G Ex ec IIA T4 Gc |
| Insulation Class | Class 130 (B) |
| Operating Temperature Range | -30°C to +50°C |
