Product Details

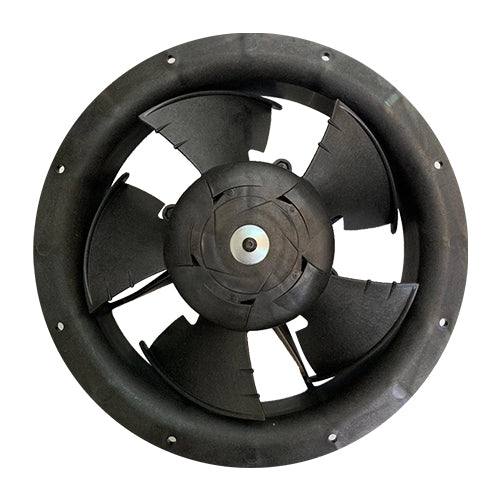

The 172mm compact axial fan is a high-performance, industrial-grade cooling fan engineered for continuous operation in commercial refrigeration units, electrical enclosures, and specialized HVAC equipment requiring explosion-proof safety standards and high moisture ingress protection.
Technical Specifications
| Product Type | Compact Axial Cooling Fan |
| Model Identifier | FP172M-K |
| Supply Voltage | 120V / 230V AC (50/60Hz) |
| Current Draw | 0.29A / 0.25A |
| Rotational Speed | 1,300 / 1,500 / 1,750 RPM |
| Direction of Rotation | Counter-Clockwise (CCW) |
| Ingress Protection Rating | IP66 |
| Explosion Protection Rating | ATEX Ex II 3G Ex ec IIA T4 Gc |
| Insulation Class | Class 130 (B) |
| Operating Temperature Range | -30°C to +50°C |
