Product Details

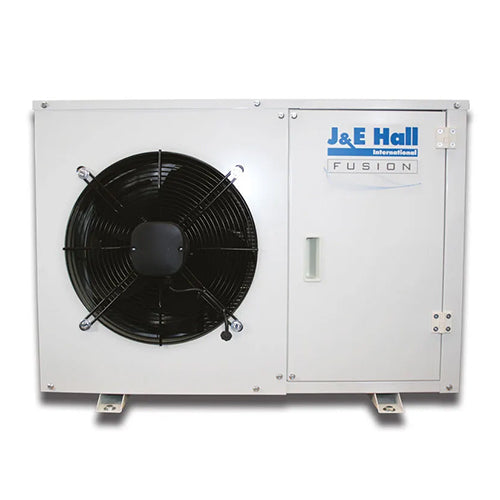

The J&E Hall Fusion and Fusion Scroll commercial condensing unit range is engineered to deliver high-efficiency, low-noise outdoor cooling across commercial refrigeration installations, including convenience stores, cold rooms, and freezer rooms. Built with electro-galvanised mild steel cabinets finished in baked polyester powder paint, these plug-and-play units feature Tecumseh reciprocating or Copeland scroll compressors, microchannel condenser coils, liquid receivers, pre-fitted filter driers, sight glasses, and adjustable dual LP/HP pressure switches. Approved for use with modern low-GWP refrigerants including R448A, R449A, R452A, and R134a.
Technical Specifications
| Model Code | Application | Electrical Supply | Compressor Type | Nominal Cooling Capacity | Liquid Line | Suction Line |
|---|---|---|---|---|---|---|
| JEHR-0170-B2-M-1 | Medium Temp (M) | 230V / 1PH / 50Hz | Tecumseh Reciprocating | 2.57 kW (@ -10°C SST / 32°C Amb) | 3/8" Flare | 5/8" Flare |
| JEHS-0200-B2-M-1 | Medium Temp (M) | 230V / 1PH / 50Hz | Copeland Scroll | 3.33 kW (@ -10°C SST / 32°C Amb) | 3/8" Flare | 3/4" Flare |
| JEHS-0200-B2-M-3 | Medium Temp (M) | 400V / 3PH / 50Hz | Copeland Scroll | 3.33 kW (@ -10°C SST / 32°C Amb) | 3/8" Flare | 3/4" Flare |
| JEHS-0250-B2-M-1 | Medium Temp (M) | 230V / 1PH / 50Hz | Copeland Scroll | 4.00 kW (@ -10°C SST / 32°C Amb) | 3/8" Flare | 3/4" Flare |
| JEHS-0250-B2-M-3 | Medium Temp (M) | 400V / 3PH / 50Hz | Copeland Scroll | 4.00 kW (@ -10°C SST / 32°C Amb) | 3/8" Flare | 3/4" Flare |
| JEHS-0300-B2-M-1 | Medium Temp (M) | 230V / 1PH / 50Hz | Copeland Scroll | 4.50 kW (@ -10°C SST / 32°C Amb) | 3/8" Flare | 3/4" Flare |
| JEHS-0300-B2-M-3 | Medium Temp (M) | 400V / 3PH / 50Hz | Copeland Scroll | 4.50 kW (@ -10°C SST / 32°C Amb) | 3/8" Flare | 3/4" Flare |
| JEHS-0350-B2-M-1 | Medium Temp (M) | 230V / 1PH / 50Hz | Copeland Scroll | 5.20 kW (@ -10°C SST / 32°C Amb) | 3/8" Flare | 3/4" Flare |
| JEHS-0350-B2-M-3 | Medium Temp (M) | 400V / 3PH / 50Hz | Copeland Scroll | 5.20 kW (@ -10°C SST / 32°C Amb) | 3/8" Flare | 3/4" Flare |
| JEHS-0400-B3-M-1 | Medium Temp (M) | 230V / 1PH / 50Hz | Copeland Scroll | 6.10 kW (@ -10°C SST / 32°C Amb) | 1/2" Flare | 7/8" Sweat |
| JEHS-0400-B3-M-3 | Medium Temp (M) | 400V / 3PH / 50Hz | Copeland Scroll | 6.10 kW (@ -10°C SST / 32°C Amb) | 1/2" Flare | 7/8" Sweat |
| JEHS-0500-B3-M-3 | Medium Temp (M) | 400V / 3PH / 50Hz | Copeland Scroll | 7.80 kW (@ -10°C SST / 32°C Amb) | 1/2" Flare | 7/8" Sweat |
| JEHS-0600-B3-M-3 | Medium Temp (M) | 400V / 3PH / 50Hz | Copeland Scroll | 9.10 kW (@ -10°C SST / 32°C Amb) | 1/2" Flare | 7/8" Sweat |
| JEHS-0680-B3-M-3 | Medium Temp (M) | 400V / 3PH / 50Hz | Copeland Scroll | 10.40 kW (@ -10°C SST / 32°C Amb) | 1/2" Flare | 1-1/8" Sweat |
| JEHS-0800-B3-M-3 | Medium Temp (M) | 400V / 3PH / 50Hz | Copeland Scroll | 12.20 kW (@ -10°C SST / 32°C Amb) | 1/2" Flare | 1-1/8" Sweat |
| JEHR-0210-B2-L-3 | Low Temp (L) | 400V / 3PH / 50Hz | Tecumseh Reciprocating | 2.10 kW (@ -30°C SST / 32°C Amb) | 3/8" Flare | 5/8" Flare |
| JEHS-0300-B2-L-3 | Low Temp (L) | 400V / 3PH / 50Hz | Copeland Low-Temp Scroll | 3.00 kW (@ -30°C SST / 32°C Amb) | 3/8" Flare | 3/4" Flare |
| JEHS-0400-B3-L-3 | Low Temp (L) | 400V / 3PH / 50Hz | Copeland Low-Temp Scroll | 4.00 kW (@ -30°C SST / 32°C Amb) | 1/2" Flare | 7/8" Sweat |
| JEHS-0500-B3-L-3 | Low Temp (L) | 400V / 3PH / 50Hz | Copeland Low-Temp Scroll | 5.00 kW (@ -30°C SST / 32°C Amb) | 1/2" Flare | 7/8" Sweat |
