Product Details

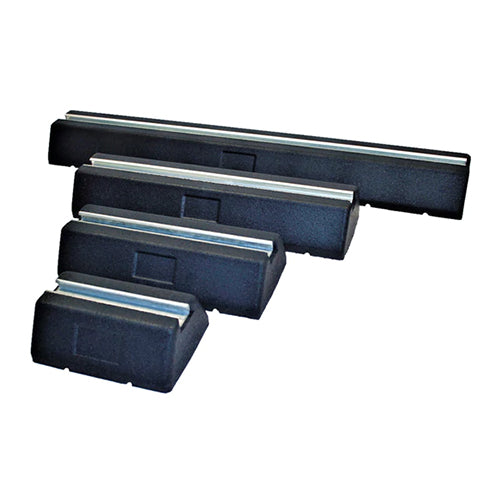

The heavy-duty 1000mm rubber support foot (FF-1000-S) is an industrial-grade floor mounting base engineered to support large multi-fan condensing units, heat pumps, heavy pipework, and cable tray runs on flat roofs, gravel, or ground surfaces. Compression-moulded from dense recycled rubber with an extended 41mm x 21mm galvanised steel strut channel and underside drainage slots, it provides stable, anti-vibration support for heavy loads up to 700kg.
Technical Specifications
| Product Type | Anti-Vibration Rubber Support Base |
| Model Identifier | FF-1000-S |
| Base Length | 1000mm (1.0 Metre) |
| Base Width | 185mm |
| Base Height | 100mm |
| Integrated Metal Profile | 41mm x 21mm Galvanised Steel Strut Channel |
| Safe Working Load (SWL) | 700kg |
| Unit Weight | 12.0kg |
