Product Details

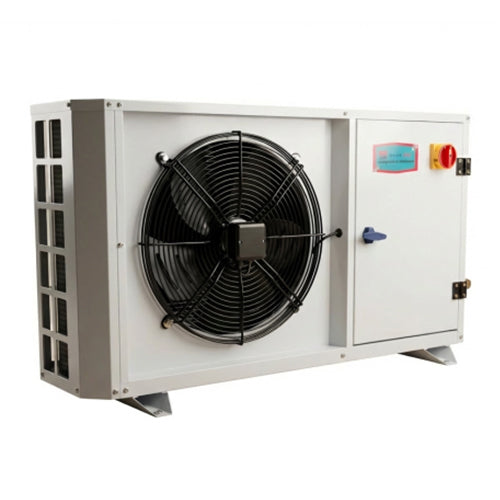

The GEM-GO air-cooled commercial condensing unit range is engineered to deliver high-performance outdoor cooling across retail food display cabinets, cold rooms, and walk-in freezers throughout the UK. Powered by efficient Copeland ZB series medium-temperature and ZSI series low-temperature scroll compressors, each unit is housed in a durable white acoustic enclosure. Fully factory-configured for trade installations, the GEM-GO series includes an integrated SAGINOMIYA wind speed head pressure regulator, internal electrical control box with isolator, liquid receiver, pre-fitted filter drier, visible front sight glass, 6-pole axial fan, and low-temperature suction line accumulators with heating tape.
Technical Specifications
| Model Code | Application | Compressor Model | Motor Power | Electrical Supply | Standard Equipment |
|---|---|---|---|---|---|
| UCG02MZB | Medium Temp (ZB) | Copeland ZB15KQE | 2.0 HP | 230V / 1PH / 50Hz | SAGINOMIYA Speed Regulator, Sight Glass, Drier, Receiver |
| UCG2.5MZB | Medium Temp (ZB) | Copeland ZB19KQE | 2.5 HP | 230V / 1PH / 50Hz | SAGINOMIYA Speed Regulator, Sight Glass, Drier, Receiver |
| UCG03MZB | Medium Temp (ZB) | Copeland ZB21KQE | 3.0 HP | 230V / 1PH / 50Hz | SAGINOMIYA Speed Regulator, Sight Glass, Drier, Receiver |
| UCG3.5MZB | Medium Temp (ZB) | Copeland ZB26KQE | 3.5 HP | 230V / 1PH / 50Hz | SAGINOMIYA Speed Regulator, Sight Glass, Drier, Receiver |
| UCG04MZB | Medium Temp (ZB) | Copeland ZB29KQE | 4.0 HP | 230V / 1PH / 50Hz | SAGINOMIYA Speed Regulator, Sight Glass, Drier, Receiver |
| UCG05MZB | Medium Temp (ZB) | Copeland ZB38KQE | 5.0 HP | 415V / 3PH / 50Hz | SAGINOMIYA Speed Regulator, Sight Glass, Drier, Receiver |
| UCG06MZB | Medium Temp (ZB) | Copeland ZB45KQE | 6.0 HP | 415V / 3PH / 50Hz | SAGINOMIYA Speed Regulator, Sight Glass, Drier, Receiver |
| UCG02LZB | Low Temp (ZSI) | Copeland ZSI06KQE | 2.0 HP | 230V / 1PH / 50Hz | Accumulator, Heating Tape, Check Valve, Speed Regulator |
| UCG03LZB | Low Temp (ZSI) | Copeland ZSI09KQE | 3.0 HP | 415V / 3PH / 50Hz | Accumulator, Heating Tape, Check Valve, Speed Regulator |
| UCG04LZB | Low Temp (ZSI) | Copeland ZSI11KQE | 4.0 HP | 415V / 3PH / 50Hz | Accumulator, Heating Tape, Check Valve, Speed Regulator |
| UCG05LZB | Low Temp (ZSI) | Copeland ZSI15KQE | 5.0 HP | 415V / 3PH / 50Hz | Accumulator, Heating Tape, Check Valve, Speed Regulator |
