Product Details

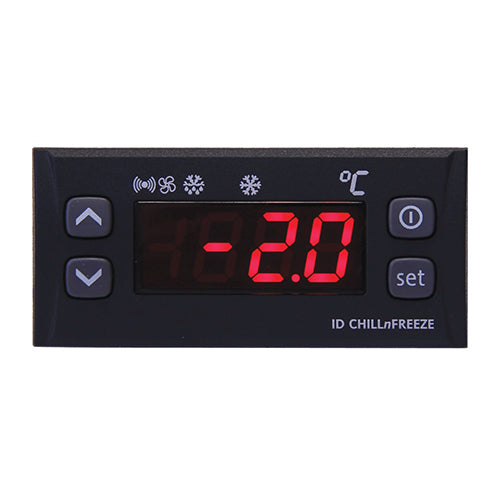

The Eliwell ID Chill n Freeze digital microprocessor controller is a professional multi-stage thermostat designed to manage low-temperature freezing units, ventilated cabinets, and commercial cold stores.
Technical Specifications
| Brand | Eliwell |
| Model Series | ID Chill n Freeze |
| Manufacturer Code | IW2CYI0TCH701 |
| Supply Voltage | 230V AC (230Vac) |
| Power Consumption | 4.5W |
| Relay Outputs | 3x Relays (Compressor / Defrost / Evaporator Fans) |
| Analogue Inputs | 2x NTC / PTC Probe Inputs (Probes Included) |
| Front Panel Protection | IP65 Waterproofing |
| Front Panel Dimensions | 76 x 35 mm |
| Mounting Panel Cutout | 71 x 29 mm |
